Press kit - Press release - Titus Vineyards - MH Architects

Titus Vineyards

Saint Helena, United States

MH Architects

San Francisco, United States, 2016-03-18 -

The Titus brothers reached out to MH Architects to explore the concept of a new winery facility located in Napa Valley in 2012. The client’s stated goal was to express the spirit of Titus Vineyards wine through the architectural components of the winery design. MH Architects responded with a series of design iterations before narrowing the focus toward a design that best matched the client’s needs. During the process, architect and client reviewed the basics of production flow, matched hospitality requirements with current trends in the wine tourism industry, and created a building aesthetic which captured brand identity. The design team worked closely to accommodate the complex layout of shiny fermentation tanks which catalyze anaerobic reactions under the same roof which hosts aesthetically-conscious guests with discerning palates.


Bordered by Silverado Trail to the east and the Napa River to the west, the 54-acre project site is located just north of St. Helena with views overlooking estate vineyards. Previously, an existing farm house accommodated occasional informal tastings on a picnic bench and wine was produced at a rented custom crush facility. The client wanted take advantage of the picturesque setting and integrate a tasting experience for an ever-growing clientele with a state-of-the-art production facility. The new building would enable Titus Vineyards to sell wine directly to their customers and engage those customers with the land where the grapes were originally grown and the process of the wine being made.


Program

MH Architects discussed the winemaking process at length with winery staff in order to map out crucial adjacencies for production flow.  Staff was forthcoming with technical requirements for all equipment. Necessary clearances were observed and efficient routing for all plumbing and electrical components were optimized. As the equipment was integrated into the floorplan, the building itself became a wine-making machine.


As a 20,000 case production facility, Titus is generally considered a “boutique” winery where crafted production is emphasized over the volume of wine that is produced. Fruit is delivered directly to the Covered Crush area from flatbed trucks and dumped onto horizontal conveyances for cellar staff to remove any substandard grape clusters. After being processed by the destemmer, the grape “must” is pumped to 6000-gallon fermentation tanks in the adjacent Fermentation Room. During the next six weeks, glucose is converted to carbon dioxide, heat, and ethyl alcohol while the age-old process of fermentation is administered through a tightly-controlled process. Following crush and fermentation, the wine is then pumped into 60-gallon wood barrels stacked five racks tall where it will age for two years in the Barrel Storage Room.


Architectural Approach

Siting the building was complicated due to proximity to the Napa River. To mitigate flood risk, the winery was raised to sit atop on a 5- to 8-foot-tall earthen berm. In addition to avoiding high water, the elevated building pad afforded the new Tasting Room uninterrupted views over the surrounding vineyards to the Napa River and the wooded Mayacama Range beyond.


Because of the raised berm, every effort was made to reduce the vertical height of the structure and the profile of the building in general. The large roof spans at the Fermentation and Barrel Storage Rooms were achieved with flat metal trusses as opposed to sloped gables. Most of the perimeter walls of the building were constructed with tilt-up board-formed concrete. The formwork and rebar for the walls were laid out on 6-inch-wide boards to create a rich, striated texture. After curing, each of the concrete walls was “tilted up” 22-feet high and into place by crane.  Because the walls were precast, special care was taken to coordinate imbedded metal anchors to receive the ends of the metal trusses in order to structurally interlock the roof and walls together.


The horizontal lines that define the board-formed concrete walls repeat in the Hospitality Room suspended ceiling, comprised of varied width and depth wooden slats. Glass blade LED light fixtures set between the slats maintain the linear theme. Offsetting the hard concrete floors and walls, the slatted ceiling baffles sound gently and mitigates acoustical resonance allowing intelligible conversation when multiple groups of guests are present. MH Architects also designed linear pendant fixtures over the Tasting Counter and in the individual Tasting Rooms. Suspended by pairs of minimal aircraft cables, the fixtures are comprised of rectilinear wooden blocks of alder to match the ceiling with an LED light slot on the bottom.


Blending of Interior and Exterior

The distinction between the winery interior and the natural setting was intentionally blurred. Sliding glass Nana bi-fold doors span a 24-foot-wide opening between the Tasting Room and the exterior covered porch overlooking the vineyards to the west. The concrete floor and wood slat ceiling finishes continue uninterrupted between the interior and exterior. The Tasting Room space expands toward the covered porch and the crisp lines in the ceiling mirror the cultivated vineyard rows beyond.


During a tasting, guests may admire the view of the estate vineyards to the west or alternately observe the cellar staff hard at work in the Crush and Fermentation Rooms through a glass wall to the east. Flanked by grapevines and fermentation tanks, the winemaking process is integral to the guest experience. As wine production weaves with wine hospitality, the philosophy of the Titus Vineyards brand translates into built form.


Credits

Address: 2971 Silverado Trail N, St Helena, CA 94574

Client: Titus Vineyards

Architect: Matt Hollis, Principal + Lead Designer, MH Architects

Project Manager: Helen Vasquez, MH Architects

Civil Engineer: Mike Muelrath, Applied Civil Engineering Inc.

Structural Engineer: Rich Burris, Structural Design Group (SDG)

Contractor: Steve Kilgannon, Facility Development Construction (FDC)

Year: Began in 2012, Construction 2014-2015

Photographer: Tim Maloney, Technical Imagery Studios


- 30 -


Media contact
  • MH Architects
  • Emma Doctors, Marketing & Administration Assistant
  • emma@matthollis.com
  • (415) 977-0194 ex. 106
Press kit | 2039-01 - Press release | Titus Vineyards - MH Architects  - Industrial Architecture -      The Southwest corner of Titus Winery is characterized by the covered hospitality area overlooking surrounding vineyards.  Exterior materials include cedar soffits, concrete board-form tilt-up walls, gunmetal blue panels above windows, and anodized aluminum window frames.    - Photo credit:  Technical Imagery Studios

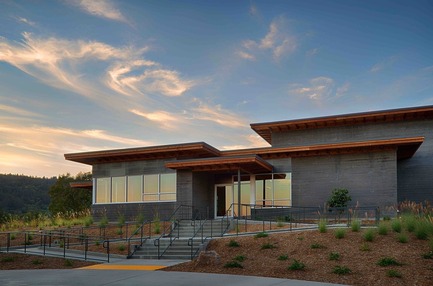

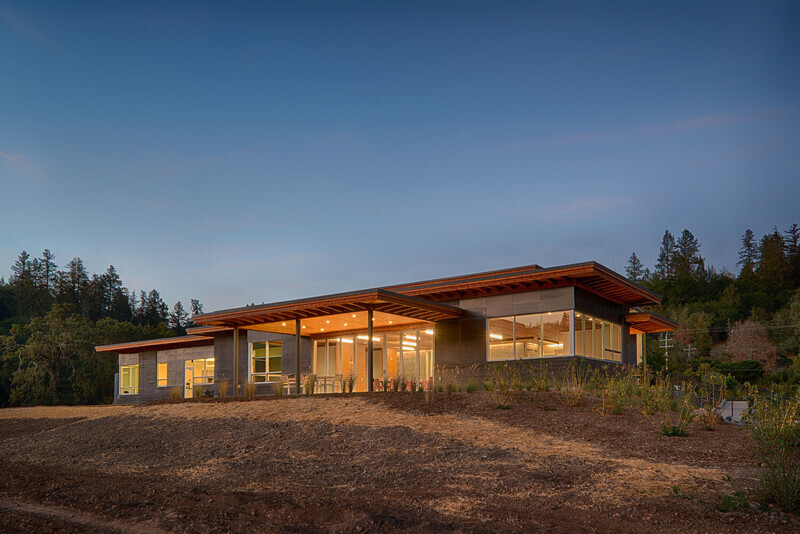

The Southwest corner of Titus Winery is characterized by the covered hospitality area overlooking surrounding vineyards.  Exterior materials include cedar soffits, concrete board-form tilt-up walls, gunmetal blue panels above windows, and anodized aluminum window frames.
Photo credit: Technical Imagery Studios
Download
Very High-resolution image
24.53 x 16.36
300dpi
Press kit | 2039-01 - Press release | Titus Vineyards - MH Architects  - Industrial Architecture -     The main entrance of Titus Winery is a balanced composition of varied-height, layered horizontal roof planes. &nbsp;Exterior materials include cedar soffits, concrete board-form tilt-up walls, gunmetal blue panels above windows, and anodized aluminum window frames.    - Photo credit:   Technical Imagery Studios<br>

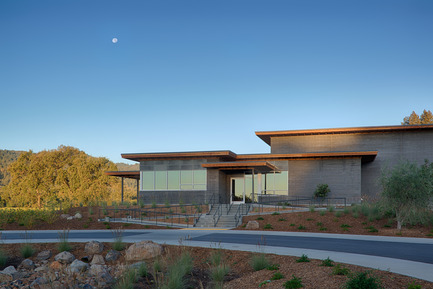

The main entrance of Titus Winery is a balanced composition of varied-height, layered horizontal roof planes.  Exterior materials include cedar soffits, concrete board-form tilt-up walls, gunmetal blue panels above windows, and anodized aluminum window frames.
Photo credit: Technical Imagery Studios
Download
Very High-resolution image
24.52 x 16.35
300dpi
Press kit | 2039-01 - Press release | Titus Vineyards - MH Architects  - Industrial Architecture -  The Southwest corner of Titus Winery is characterized by the covered hospitality area overlooking surrounding vineyards. &nbsp;Exterior materials include cedar soffits, concrete board-form tilt-up walls, gunmetal blue panels above windows, and anodized aluminum window frames.   - Photo credit: Technical Imagery Studios&nbsp;

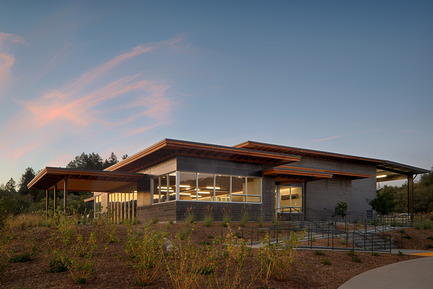

The Southwest corner of Titus Winery is characterized by the covered hospitality area overlooking surrounding vineyards.  Exterior materials include cedar soffits, concrete board-form tilt-up walls, gunmetal blue panels above windows, and anodized aluminum window frames.
Photo credit: Technical Imagery Studios
Download
Medium-resolution image
6.83 x 4.52
300dpi
Press kit | 2039-01 - Press release | Titus Vineyards - MH Architects  - Industrial Architecture -   The Southwest corner of Titus Winery is characterized by the covered hospitality area overlooking surrounding vineyards. &nbsp;Exterior materials include cedar soffits, concrete board-form tilt-up walls, gunmetal blue panels above windows, and anodized aluminum window frames.      - Photo credit:   Technical Imagery Studios
The Southwest corner of Titus Winery is characterized by the covered hospitality area overlooking surrounding vineyards.  Exterior materials include cedar soffits, concrete board-form tilt-up walls, gunmetal blue panels above windows, and anodized aluminum window frames.
Photo credit: Technical Imagery Studios
Download
Very High-resolution image
24.52 x 16.37
300dpi
Press kit | 2039-01 - Press release | Titus Vineyards - MH Architects  - Industrial Architecture - Lined with 6000-gallon fermentation tanks on either side and a metal truss roof above, the Fermentation Room overlooks the Covered Crush area beyond.&nbsp; Fermentation is a six-week, highly-controlled process that involves the conversion of glucose to carbon dioxide, heat, and ethyl alcohol.&nbsp;    - Photo credit:  Technical Imagery Studios

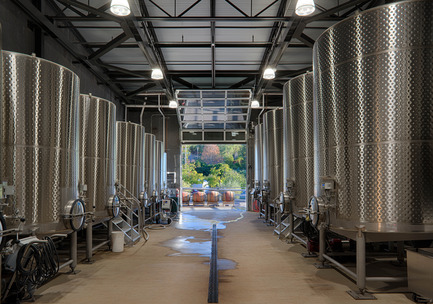

Lined with 6000-gallon fermentation tanks on either side and a metal truss roof above, the Fermentation Room overlooks the Covered Crush area beyond.  Fermentation is a six-week, highly-controlled process that involves the conversion of glucose to carbon dioxide, heat, and ethyl alcohol.
Photo credit: Technical Imagery Studios
Download
Very High-resolution image
24.2 x 17.0
300dpi
Press kit | 2039-01 - Press release | Titus Vineyards - MH Architects  - Industrial Architecture -      The concrete board-form walls that from the exterior&nbsp;façade continue at the interior and provide a textured surface for a recessed LED light above. &nbsp;Matching interior and exterior finish materials allowed for a blending between the two spaces.&nbsp;  - Photo credit:   Technical Imagery Studios

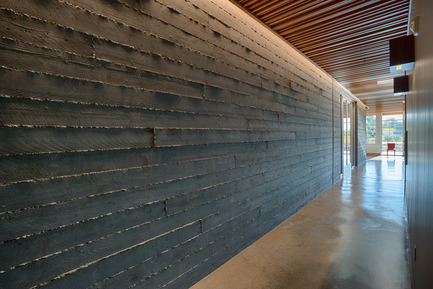

The concrete board-form walls that from the exterior façade continue at the interior and provide a textured surface for a recessed LED light above.  Matching interior and exterior finish materials allowed for a blending between the two spaces.
Photo credit: Technical Imagery Studios
Download
Very High-resolution image
24.52 x 16.36
300dpi
Press kit | 2039-01 - Press release | Titus Vineyards - MH Architects  - Industrial Architecture -     The suspending ceiling of the Hospitality Room is comprised of long horizontal slats of varied widths and depths with a view of the surrounding vineyards through bi-fold Nana Walls. &nbsp;Glass blade LED light fixtures hang between the slats in a staggered composition. &nbsp;The slatted ceiling mitigates acoustical resonance and allows for flexible ventilation.  - Photo credit:  Technical Imagery Studios

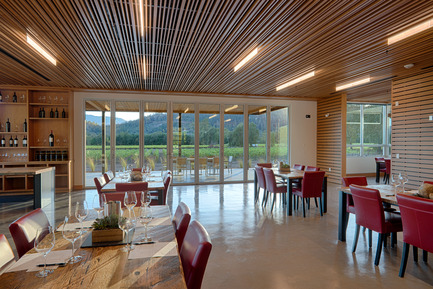

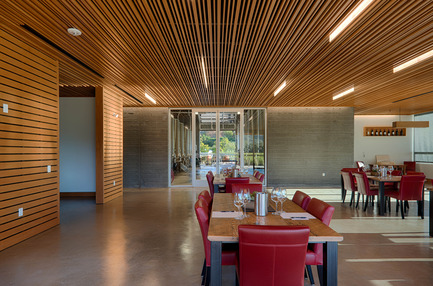

The suspending ceiling of the Hospitality Room is comprised of long horizontal slats of varied widths and depths with a view of the surrounding vineyards through bi-fold Nana Walls.  Glass blade LED light fixtures hang between the slats in a staggered composition.  The slatted ceiling mitigates acoustical resonance and allows for flexible ventilation.
Photo credit: Technical Imagery Studios
Download
Very High-resolution image
24.53 x 16.37
300dpi
Press kit | 2039-01 - Press release | Titus Vineyards - MH Architects  - Industrial Architecture -     The suspending ceiling of the Hospitality Room is comprised of long horizontal slats of varied widths and depths with a view of the Fermentation Room through the glass wall beyond. &nbsp;Glass blade LED light fixtures hang between the slats in a staggered composition. &nbsp;The slatted ceiling mitigates acoustical resonance and allows for flexible ventilation.    - Photo credit:  Technical Imagery Studios
The suspending ceiling of the Hospitality Room is comprised of long horizontal slats of varied widths and depths with a view of the Fermentation Room through the glass wall beyond.  Glass blade LED light fixtures hang between the slats in a staggered composition.  The slatted ceiling mitigates acoustical resonance and allows for flexible ventilation.
Photo credit: Technical Imagery Studios
Download
Very High-resolution image
24.85 x 16.44
300dpi
Press kit | 2039-01 - Press release | Titus Vineyards - MH Architects  - Industrial Architecture -    The west façade of Titus Winery is characterized by the covered Hospitality area overlooking surrounding vineyards. &nbsp;Exterior materials include cedar soffits, concrete board-form tilt-up walls, gunmetal blue panels above windows, and anodized aluminum window frames.&nbsp;    - Photo credit: Technical Imagery Studios

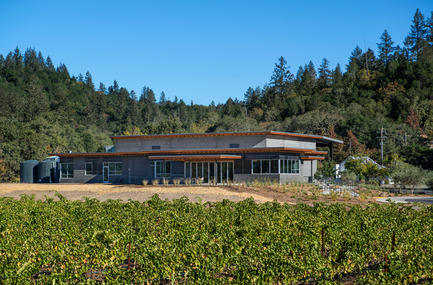

The west façade of Titus Winery is characterized by the covered Hospitality area overlooking surrounding vineyards.  Exterior materials include cedar soffits, concrete board-form tilt-up walls, gunmetal blue panels above windows, and anodized aluminum window frames.
Photo credit: Technical Imagery Studios
Download
Very High-resolution image
24.13 x 15.9
300dpi
Press kit | 2039-01 - Press release | Titus Vineyards - MH Architects  - Industrial Architecture - The building section of the Hospitality/Administration Building describes varied-height layered horizontal roof planes over Hospitality and Production spaces. &nbsp;Construction assembly components include cedar soffits, concrete board-form tilt-up walls, gunmetal blue panels above windows, and anodized aluminum window frames.     - Photo credit:  MH Architects

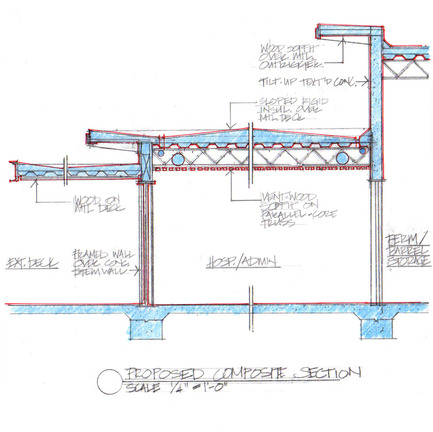

The building section of the Hospitality/Administration Building describes varied-height layered horizontal roof planes over Hospitality and Production spaces.  Construction assembly components include cedar soffits, concrete board-form tilt-up walls, gunmetal blue panels above windows, and anodized aluminum window frames.
Photo credit: MH Architects
Download
Low-resolution image
Press kit | 2039-01 - Press release | Titus Vineyards - MH Architects  - Industrial Architecture -   Early exterior elevation hand-sketches describing a balanced composition of varied-height, layered horizontal roof planes. &nbsp;The building was raised on an earthen berm to mitigate flood risk from the nearby Napa River.&nbsp;Exterior materials include cedar soffits, concrete board-form tilt-up walls, gunmetal blue panels above windows, and anodized aluminum window frames.&nbsp;   - Photo credit: MH Architects&nbsp;

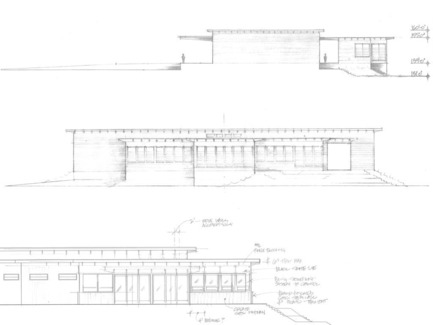

Early exterior elevation hand-sketches describing a balanced composition of varied-height, layered horizontal roof planes.  The building was raised on an earthen berm to mitigate flood risk from the nearby Napa River. Exterior materials include cedar soffits, concrete board-form tilt-up walls, gunmetal blue panels above windows, and anodized aluminum window frames.
Photo credit: MH Architects
Download
Low-resolution image
Press kit | 2039-01 - Press release | Titus Vineyards - MH Architects  - Industrial Architecture -      The site plan demonstrates that the building location was determined by a variety of local constraints including the Napa River flood boundary line to the West, Silverado Trail to the East, historic structures on the property, and traffic considerations associated with the nearby blind curve. &nbsp;The building was raised on an earthen berm to mitigate flood risk from the nearby Napa River. &nbsp;<br>     - Photo credit:  MH Architects

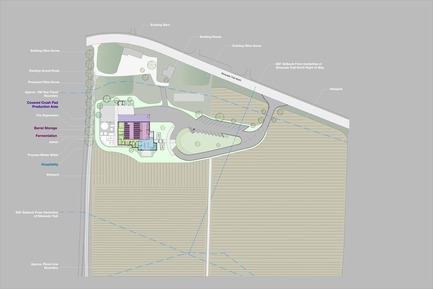

The site plan demonstrates that the building location was determined by a variety of local constraints including the Napa River flood boundary line to the West, Silverado Trail to the East, historic structures on the property, and traffic considerations associated with the nearby blind curve.  The building was raised on an earthen berm to mitigate flood risk from the nearby Napa River.
Photo credit: MH Architects
Download
Very High-resolution image
36.0 x 24.0
300dpi
Press kit | 2039-01 - Press release | Titus Vineyards - MH Architects  - Industrial Architecture - The early hand-sketches describe the evolution of the building plan with relation to the site plan. &nbsp;The building was raised on an earthen berm to mitigate flood risk from the nearby Napa River. &nbsp;   - Photo credit:  MH Architects

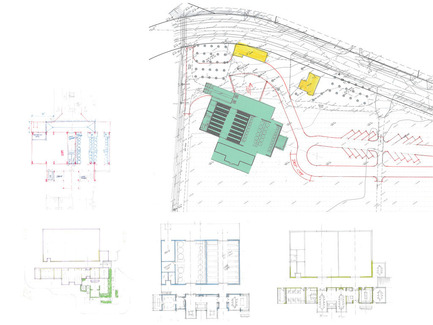

The early hand-sketches describe the evolution of the building plan with relation to the site plan.  The building was raised on an earthen berm to mitigate flood risk from the nearby Napa River.
Photo credit: MH Architects
Download
Low-resolution image
Press kit | 2039-01 - Press release | Titus Vineyards - MH Architects  - Industrial Architecture - The 3D-view of the Titus Winery project site depicts all the major project components including the Covered Crush Pad, Production Area, Fermentation, Barrel Storage Room, Administration, and Hospitality Room.&nbsp;     - Photo credit:  MH Architects

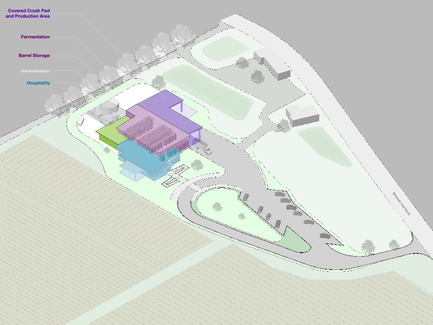

The 3D-view of the Titus Winery project site depicts all the major project components including the Covered Crush Pad, Production Area, Fermentation, Barrel Storage Room, Administration, and Hospitality Room.
Photo credit: MH Architects
Download
Low-resolution image
Press kit | 2039-01 - Press release | Titus Vineyards - MH Architects  - Industrial Architecture - A hand-sketch of the Titus Winery building plan illustrates the integration of Hospitality and Production spaces in one unified composition. &nbsp;Hospitality spaces cluster on the west face of the building to take advantage of the vineyard view while Production spaces face the nearby road to expedite the flow of winemaking. - Photo credit: MH Architects&nbsp;
A hand-sketch of the Titus Winery building plan illustrates the integration of Hospitality and Production spaces in one unified composition.  Hospitality spaces cluster on the west face of the building to take advantage of the vineyard view while Production spaces face the nearby road to expedite the flow of winemaking.
Photo credit: MH Architects
Download
Medium-resolution image
7.05 x 5.74
300dpi
